Drop Panel DIY Kit


Image of Drop Panel DIY Kit
  • Image of Drop Panel DIY Kit
  • Image of Drop Panel DIY Kit

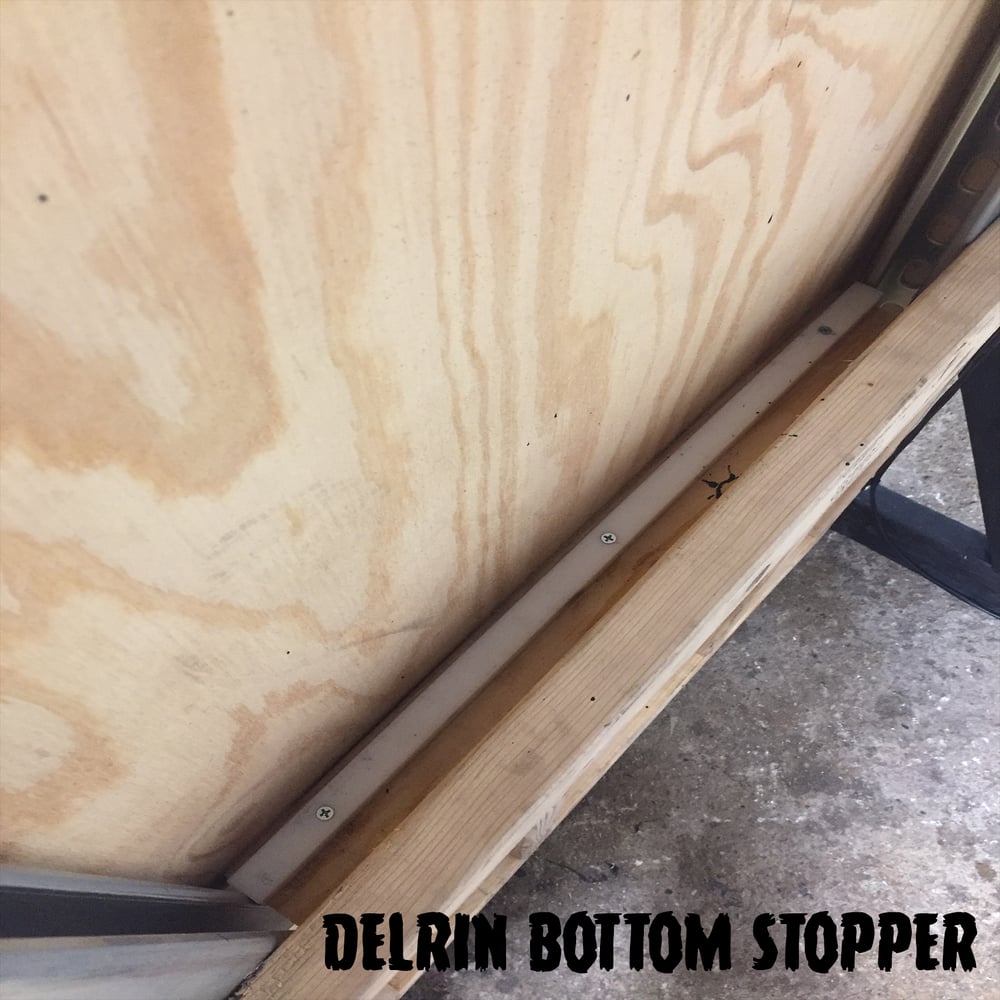

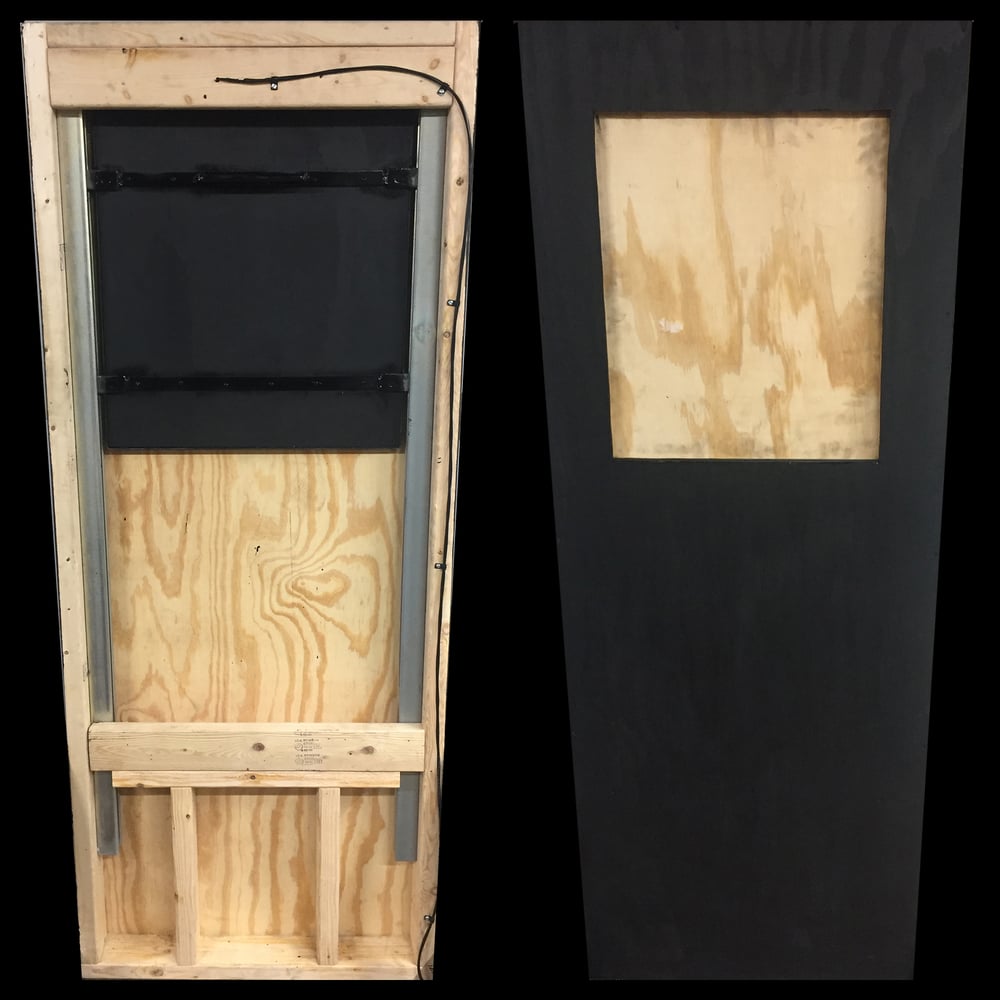

We've worked out all of the hiccups that could be associated with drop panels with this complete DIY kit! Our kit is a hands free activated drop panel using a mag lock and a foot switch for activation. A bright LED indicator light is on the foot switch so your actor can easily find the foot switch in a dark setting. Assembly is required along with purchasing a 10' piece of UniStrut, Three 2x4's, and some screws. Instructions are included with detailed pictures along with all measurements for your wood cuts. The "Drop Panel" measures 20"x24" and has a welded angle iron metal frame with 4 bearing guide rollers that fit inside of the UniStrut channel. You can easily paint the panel to match your wall, or attach a paper picture easily! The kit also comes with a Delrin Stopper plate to prevent any wear from contact as the panel comes crashing down. To make shipping easier and to save you $, you will need to spend about $30 on additional supplies (unistrut, wood, screws)

Included in the kit:
20"x24" Drop Panel (with welded on bearing guide rollers and metal frame)
Mag Lock and bracket
Foot Switch with LED Indicator (Plug and Play)
Power Adapter
DELRIN stopper plate
All necessary hardware for installation
Detailed Instructions

What you need to supply to build the frame:
(Available at any big hardware store; Home Depot, Lowes, Etc)
Three 8' 2x4s
10' Unistrut Channel
1" Drywall/Wood Screws
2-1/2" Drywall/Wood Screws
