1-1/16" Bore Air Cylinder Complete Kit

Our complete pneumatic kits come in two sizes: 1-1/16" Bore and 1.5" Bore

1-1/16" Bore cylinders are the most common size for light weight movements. This size can easily lift or open a lid, door, or basic mechanism with a lightweight prop attached.

1.5" Bore cylinders are often used when your moving something heavier. These can still be used to open a lid, door, or mechanism but they can lift more weight at a lower PSI.

**NOTE: THIS LISTING IS FOR A 1-1/16" BORE AIR CYLINDER**

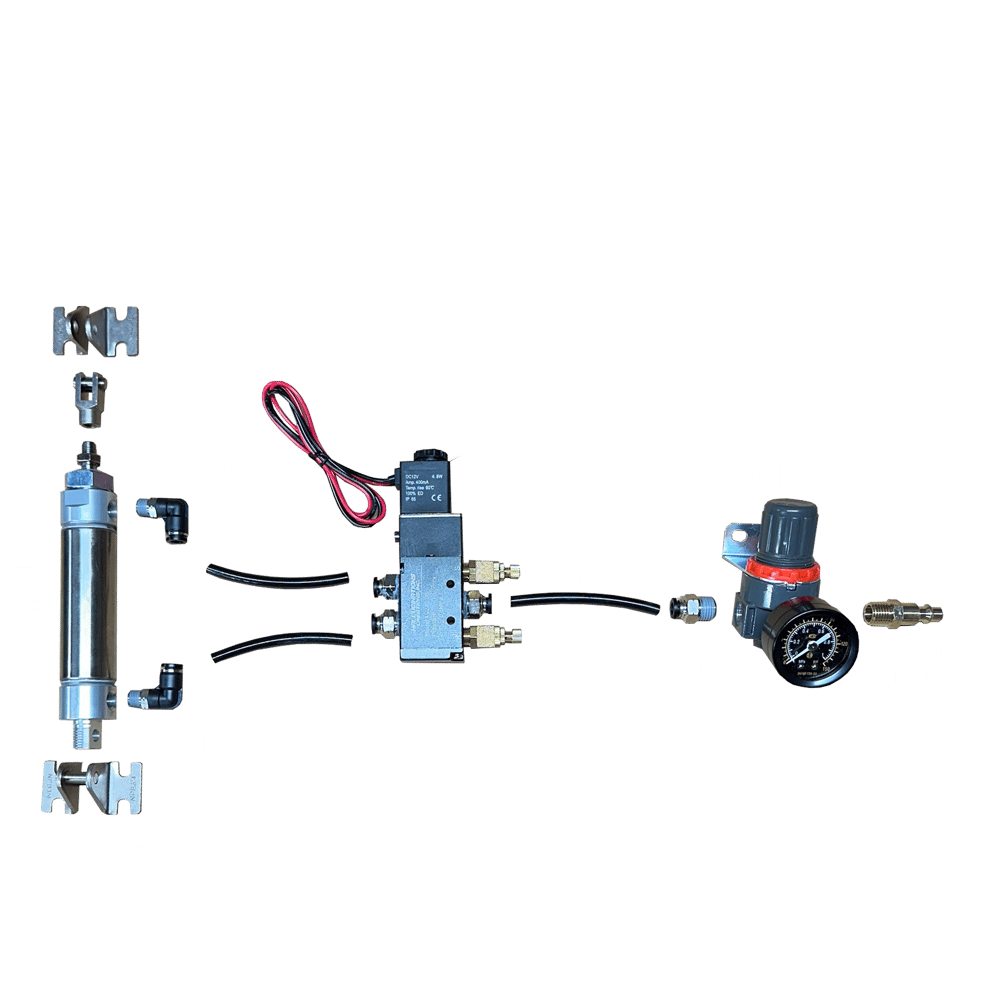

Our Cylinder kits are rated at 150PSI MAX and include EVERYTHING you will need to get the cylinder operating.

1 - 1-1/16" Bore Air Cylinder
1 - 12 Volt DC 1/4" NPT 4 Way Solenoid Valve
2 - 1/8" NPT - 1/4" Tube Push Fittings
1 - 1/4" NPT Air Regulator
1 - 1/4" NPT - 1/4" Tube Push Fitting
1 - 1/4" NPT Industrial Quick Connect Fitting
2 - Pivot Brackets
1 - Cylinder Clevis
10' of 1/4" Air Line

CHOOSE AIR CYLINDER STROKE SIZE USING DROP DOWN MENU - 2" or 6"
(The stroke is the length the cylinder extends)

**THESE KITS SHIP FREE!**

*You will need a way to power the solenoid valve. The Solenoid Valve included is 12 Volt DC. The easiest and most common is to use a "Prop Controller" such as a Aamon Duo or Picoboo controller. You can also use a 12 volt 1 amp power adapter hooked directly to the valve, and get a remote control outlet (from your local hardware store) to manually trigger this. If you have any questions about powering the solenoid, send us an email and we will help out!
