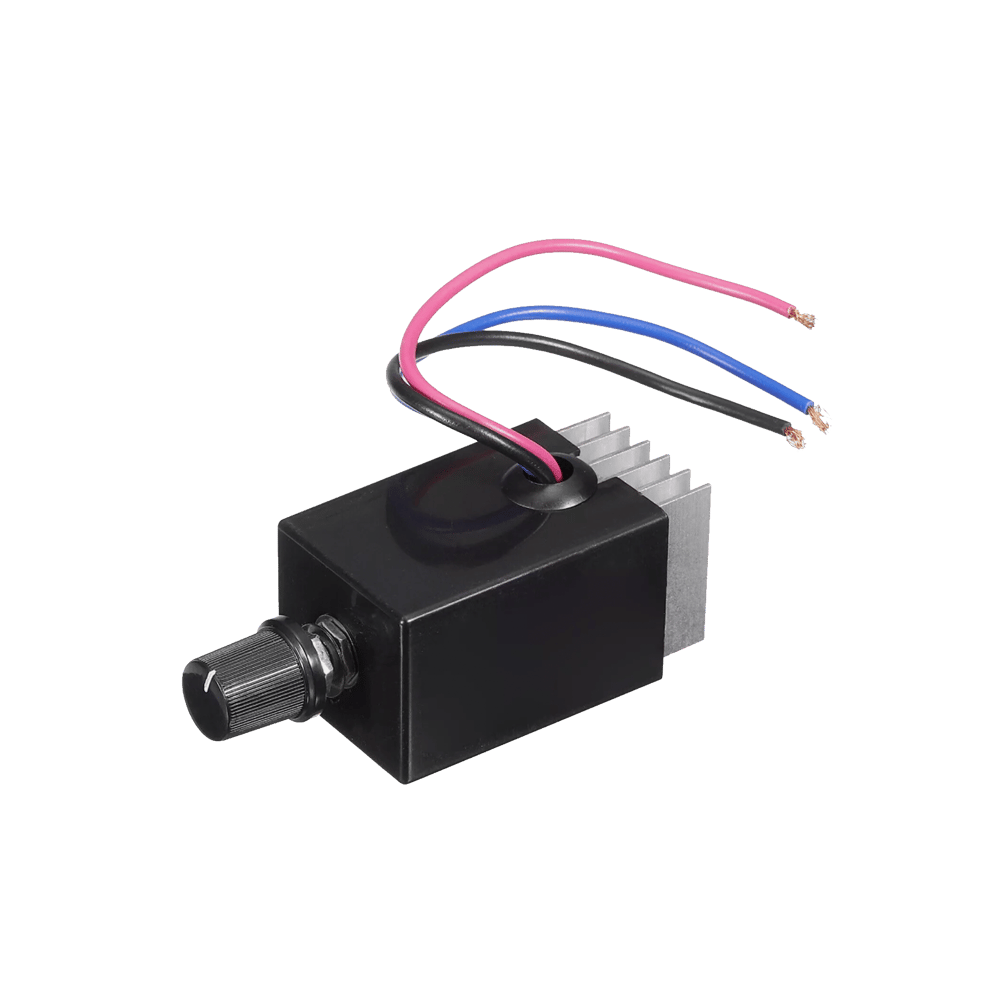

Wiper Motor Speed Controller
$15.00
This speed controller goes inline from your 12 volt 5 amp power adapter and your Wiper Motor. This unit does not lower the Torque rating of your motor while being able to control the speed from fast to slow! Comes in a plastic enclosure with color matched wires (on our motors) for easy hook up!
We recommend using a solder on or screw terminal FEMALE connector with this for easy wiring.

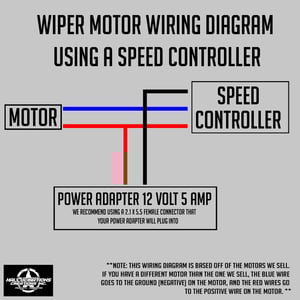

Wiring:
Black wire goes to your negative input wire (black from your power adapter)
Red wire goes to BOTH your positive red input wire and the red positive wire on the motor.
Blue wire goes to the Blue wire (High Speed) on the motor (If using a different brand wiper motor, it will go to your negative wire on the motor)
*THIS IS TO BE USED WITH A 12 VOLT 5 AMP POWER ADAPTER - NOT AN ADJUSTABLE POWER ADAPTER!
*THIS SPEED CONTROLLER IS NOT WATERPROOF AND SHOULD BE NOT LEFT OUTSIDE DIRECTLY IN THE ELEMENTS (RAIN/SNOW)
SHIPPING: SPEND $50 OR MORE IN OUR PARTS SECTION AND RECEIVE FREE SHIPPING! (If you don't hit the minimum, we will email an invoice over for the shipping costs after your order is complete)
